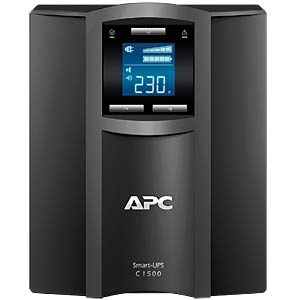

APC Smart-UPS C 1500VA LCD 230V Tower/Rack - SMC15
Code: UPSAPC15SL
Out of Stock
$785.00
or 4 interest-free payments of $
Info
APC Smart-UPS C 1500VA LCD 230V Tower/Rack - SMC1500I, 1500VA/900W Capacity, 2 x IEC Jumper, 8 x IEC 60320
- description
Output
Output Power Capacity
900 Watts / 1500 VA
Max Configurable Power
900 Watts / 1500 VA
Nominal Output Voltage
230V
Output Voltage Distortion
Less than 5% at full load
Output Frequency (sync to mains)
47 - 53 Hz for 50 Hz nominal, 57 - 63 Hz for 60 Hz nominal
Topology
Line Interactive
Waveform Type
Sine wave

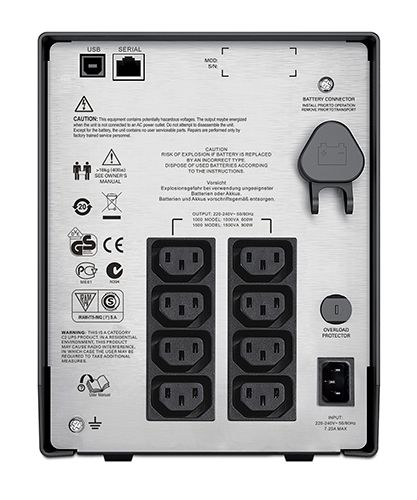

Output Connections
| (8) IEC 320 C13 |  |
| (2) IEC Jumpers |
Input
Nominal Input Voltage
230V
Input Frequency
50/60 Hz +/- 3 Hz (auto sensing)
Input Connections
| IEC-320 C14 |
Input voltage range for main operations
180 - 287V
Input voltage adjustable range for mains operation
170 - 300V
Batteries & Runtime
Battery Type
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Typical recharge time
3 hour(s)
Replacement Battery
RBC™ Quantity
1
| Load | Efficiency |
| 25% | 95.2% |
| 50% | 97.1% |
| 75% | 97.6% |
| 100% | 97.7% |
Communications & Management
Interface Port(s)
USB
Control panel
Multi-function LCD status and control console
Audible Alarm
Alarm when on battery : distinctive low battery alarm : configurable delays
Emergency Power Off (EPO)
--
Surge Protection and Filtering
Surge energy rating
459 Joules
Filtering
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
Physical
Maximum Height
219.00 mm
Maximum Width
171.00 mm
Maximum Depth
439.00 mm
Net Weight
24.09 KG
Shipping Weight
27.23 KG
Shipping Height
376.00 mm
Shipping Width
328.00 mm
Shipping Depth
595.00 mm
Color
Black
Units per Pallet
24.00
Environmental
Operating Environment
0 - 40 °C
Operating Relative Humidity
0 - 95%
Operating Elevation
0-3000 meters
Storage Temperature
-15 - 45 °C
Storage Relative Humidity
0 - 95%
Storage Elevation
0-15000 meters
Audible noise at 1 meter from surface of unit
45.00 dBA
Online Thermal Dissipation
135.00 BTU/hr
Conformance
Regulatory Approvals
C-tick, CE, GOST, VDE
Standard Warranty
2 years repair or replace
Sustainable Offer Status
RoHS
Compliant
REACH
REACH: Contains No SVHCs
